HNS M2 STEAM GENERATOR
The generator automatically prevents overheating and dry running, should there be an interruption to the water supply, protecting your investment. These generators also save operational time and effort with an automated filling function as standard and optional flushing and emptying functions – a real benefit in regions where main water contains a lot of calcium helping you prevent the chalky deposits that eventually effect performance. If you prefer, you can also control the drainage tap manually.

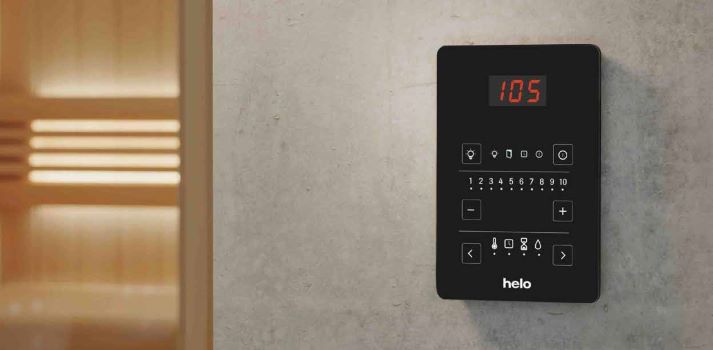

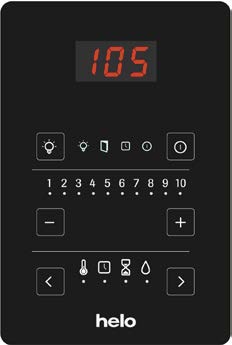

You can use the ON/OFF button with the M2 control panel in order to start or stop the steam generator ehen the control panel has been installed elsewhere. The control panel is used to set the temperature and time required.
Techincal Specifications
| Output | Light structure, acrylis, tempered glass | Light board wall + tile | Heavy wall, Concrete, Stone | Steam Production | |||
|---|---|---|---|---|---|---|---|
| kW | w / o ventilation | x / ventilation | w / o ventilation | w / ventilation | w / o ventilation | w / ventilation | kg /h |
| 3.4 | 2-7 m3 | 2-6 m3 | 2-6 m3 | 2-5 m3 | 2-5 m3 | 2-4 m3 | 5 |
| 4.7 | 3-8 m3 | 3-7 m3 | 3-7 m3 | 2-6 m3 | 2-6 m3 | 2-5 m3 | 6 |
| 6 | 4-13 m3 | 4-9 m3 | 4-8 m3 | 3-7 m3 | 4-7 m3 | 3-6 m3 | 8 |
| 7.7 | 6-15 m3 | 6-11 m3 | 6-10 m3 | 5-9 m3 | 5-9 m3 | 4-8 m3 | 10 |
| 9.5 | 9-17 m3 | 9-13 m3 | 9-14 m3 | 8-13 m3 | 7-11 m3 | 6-9 m3 | 13 |
| 12 | 12-24 m3 | 11-18 m3 | 11-20 m3 | 9-16 m3 | 11-17 m3 | 8-12 m3 | 16 |
| 14 | 18-30 m3 | 14-22 m3 | 14-24 m3 | 12-18 m3 | 12-18 m3 | 10-14 m3 | 19 |
HELO STEAM PRO
The Helo Steam Pro generator automatically prevents overheating and dry running. It saves time on maintenance and down time with automated flush function. There is also the possibility to run several units through serial connection.
Product Details
| Power (kW) | Steam Production (kg/h) | Size in mm (LxWxH) | Suitable control panel | Color |
|---|---|---|---|---|
| 9,5 | 13 | 636x380x164 | Trend or Premium | Black |
| 12 | 16 | 636x380x164 | Trend or Premium | Black |
| 14 | 19 | 636x380x164 | Trend or Premium | Black |
| 16 | 21 | 636x380x164 | Trend or Premium | Black |
Steam Room’s Min./Max. Volume (m³)
| Power | Light wall made of glass, plastic etc. | Heavy wall made of tiles, concrete, stone etc. |
||
|---|---|---|---|---|
| (kW) | With ventilation | Without ventilation | With ventilation | Without ventilation |
| 9,5 | 9-13 | 9-17 | 6-9 | 5-6 |
| 12 | 11-8 | 12-24 | 8-12 | 9-16 |
| 14 | 14-22 | 18-30 | 10-14 | 11-17 |
| 16 | 17-25 | 23-35 | 12-16 | 12-18 |
Steam Generators
Enjoy a real five-stars steam Bath Facilities
- Stand-by Function
- Hidden Out Of Sight
- Simple Installation
- Safety Guard
- Low energy Consumption
- Built-in Operational Intergrity
- First-class Tubular Elements
- Cleverest Control Panels
- Fully Welded Water Tank
Accessories & Parts
